How to Connect MySQL as Data Destination

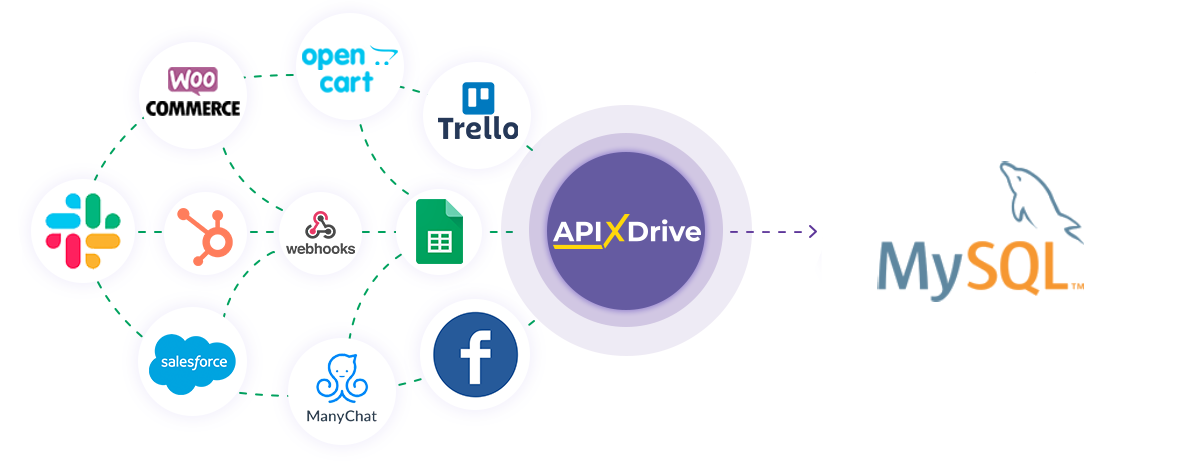

The integration will allow you to add or update rows in MySQL based on data from other systems. For example, if an order in CRM moved to another stage of the funnel, or when a new order appeared on your site, a new row will be added. This will allow you to efficiently automate your workflows and save a lot of time by eliminating the need to manually add each row to the table.

Let's go through the entire MySQL setup steps together!

Navigation:
1. What will integration with MySQL do?
2. How to connect your MySQL account to ApiX-Drive?
3. How to set up data transfer to MySQL in the selected action?
4. An example of the data that will be sent to your MySQL.
5. Auto-update and update interval.

After configuring Data Source, click "Start Configuring Data Destination"

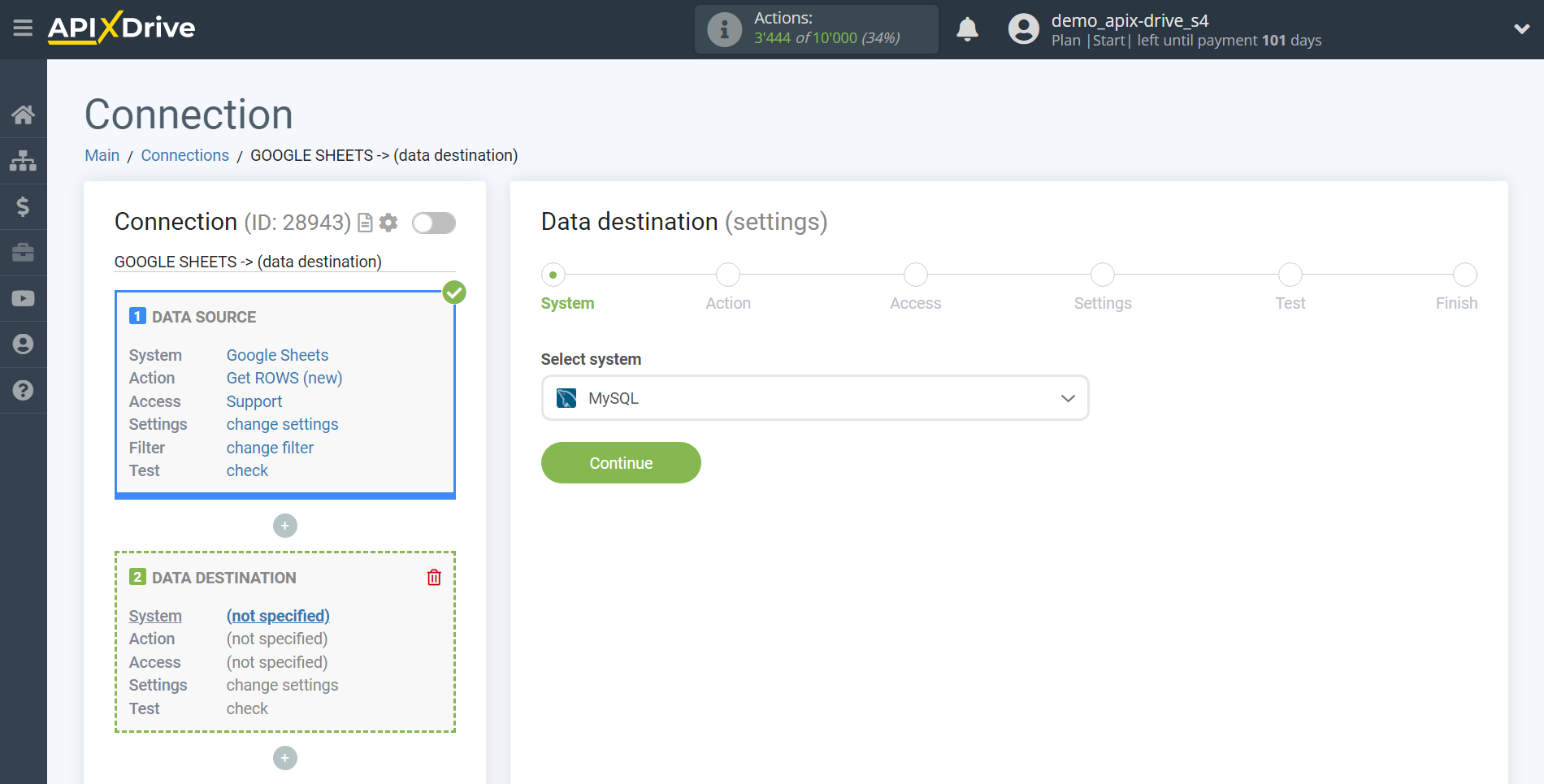

Select the system as Data Destination. In this case, you must specify MySQL.

Next, you need to specify an action, for example, "Add ROW".

- Add ROW - new rows will be added to your database.

- Update ROW - data in rows and columns you need will be updated or added to your database. The system will search for the required value in one of the columns, and if when uploading new data from the Data Source block it finds a row with the required parameter (phone number, Email or order number), then the data will be updated or added in the column specified by you.

The next step is to select the MySQL account to which will be send the data.
If there are no accounts connected to the ApiX-Drive system, click "Connect account".

Before you start set up, you need:

1. Verify that MySQL accepts external connections over TCP/IP.

2. Find the port on which deamon listens

3. Ensure this port is accessible in both directions to * the ApiX-Drive ip server from which the connection is coming * 157.230.117.136, 164.90.220.66, 142.93.106.250, 206.81.27.39,  68.183.219.78, 164.92.182.124.

4. Ensure that the user is authorized to access from the * ip or host of the ApiX-Drive server from which the * connection is made.

If you have an address bar URL in your ApiX-Drive account:

s1.apix-drive.com - 157.230.117.136
s2.apix-drive.com - 164.90.220.66
s3.apix-drive.com - 142.93.106.250
s4.apix-drive.com - 206.81.27.39
s5.apix-drive.com - 68.183.219.78
s6.apix-drive.com - 64.226.126.14
a1.apix-drive.com - 164.92.182.124

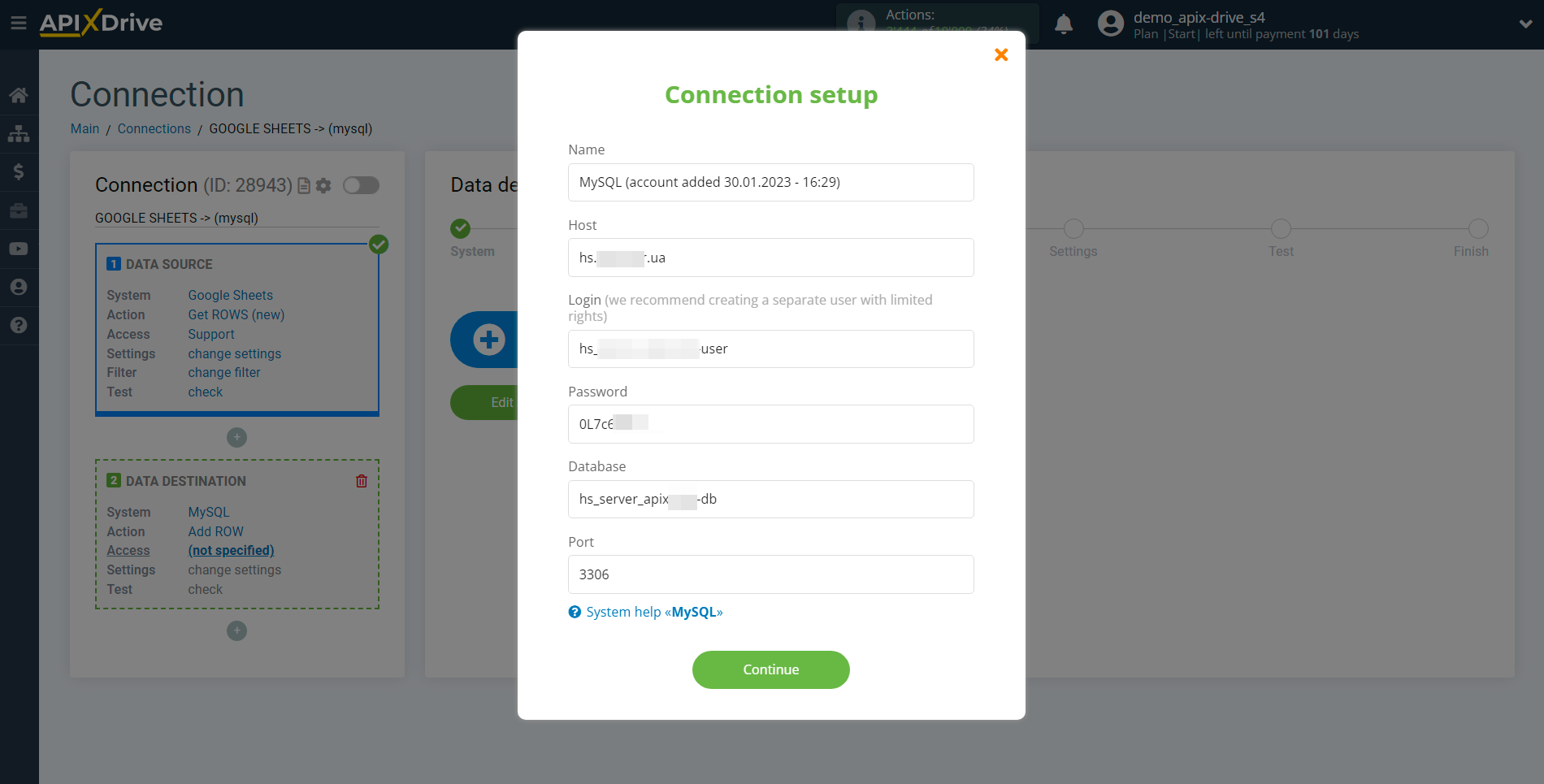

Fill the fields with the relevant data where:

- Host - your MySQL domain name specified without additional https:/, /, etc.

- Login - login to MySQL system.

- Password - password in MySQL system.

- Database - the name of the database to which our system will refer.

- Port - port to which we will connect.

You cannot use root, toor, admin, administrator system names to improve security.

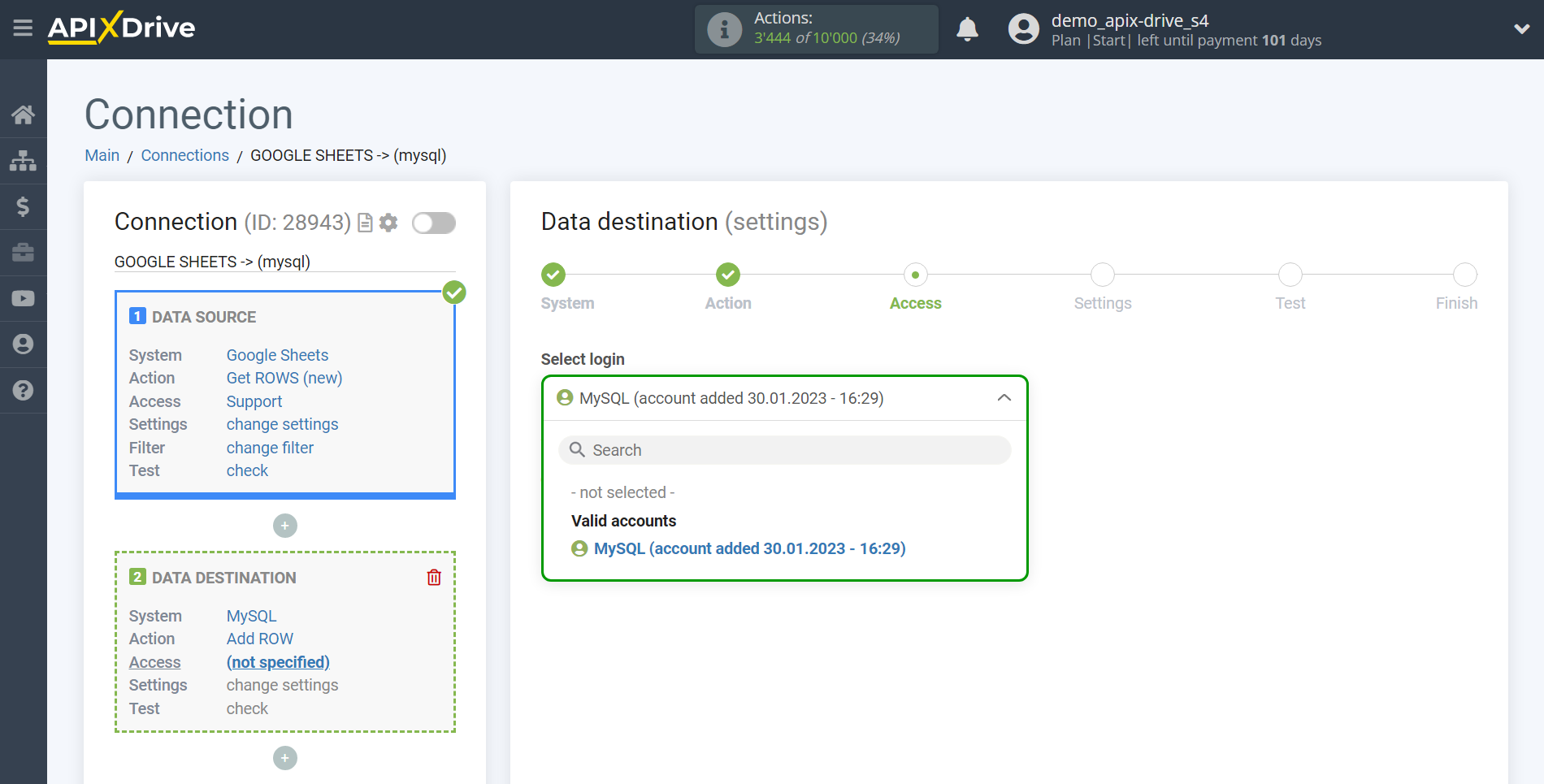

When the connected account is displayed in the "active accounts" list, select it.

Attention! If your account is in the "inactive accounts" list, check your access to this account!

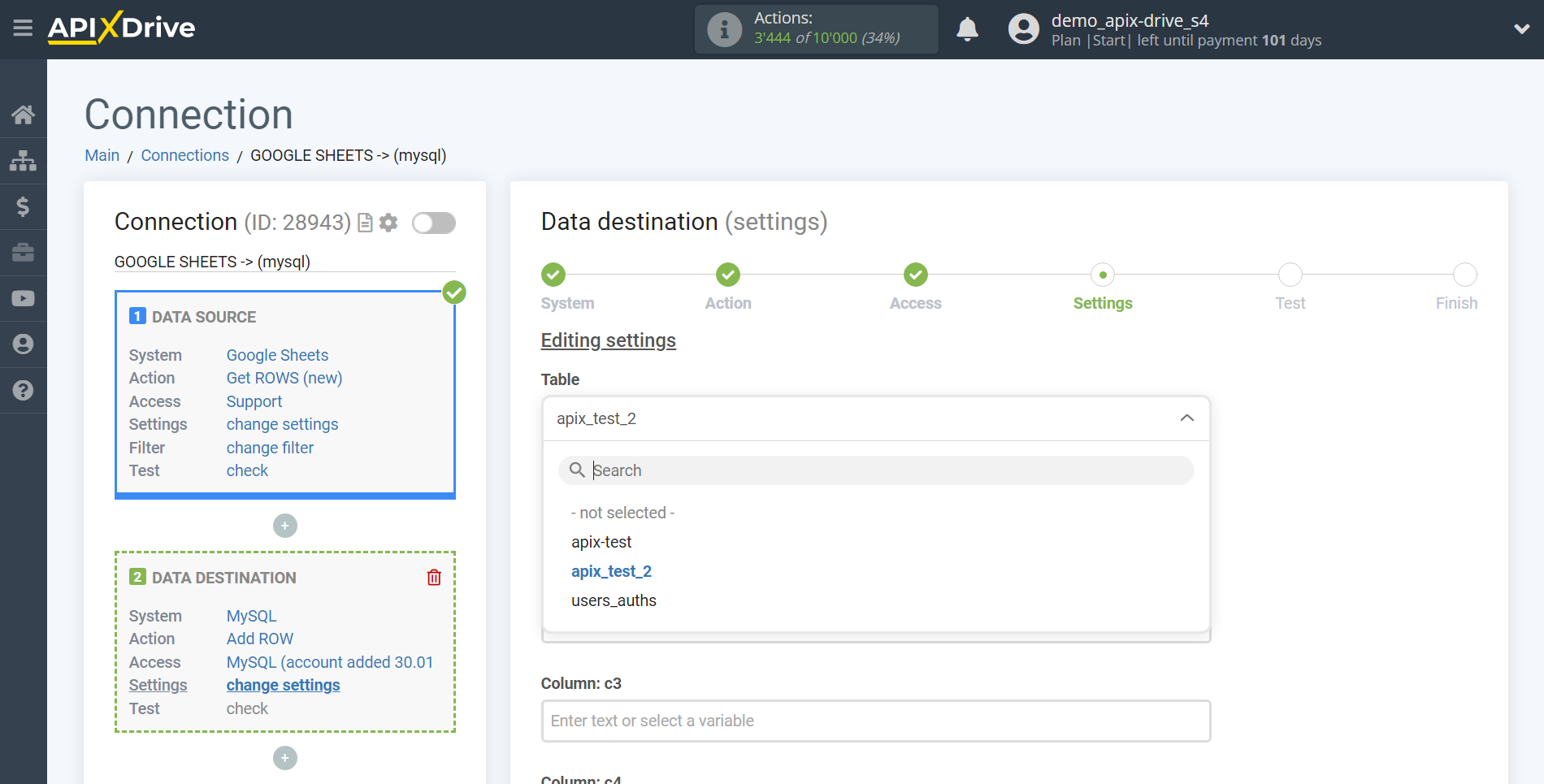

Select the table where the data will be transferred.

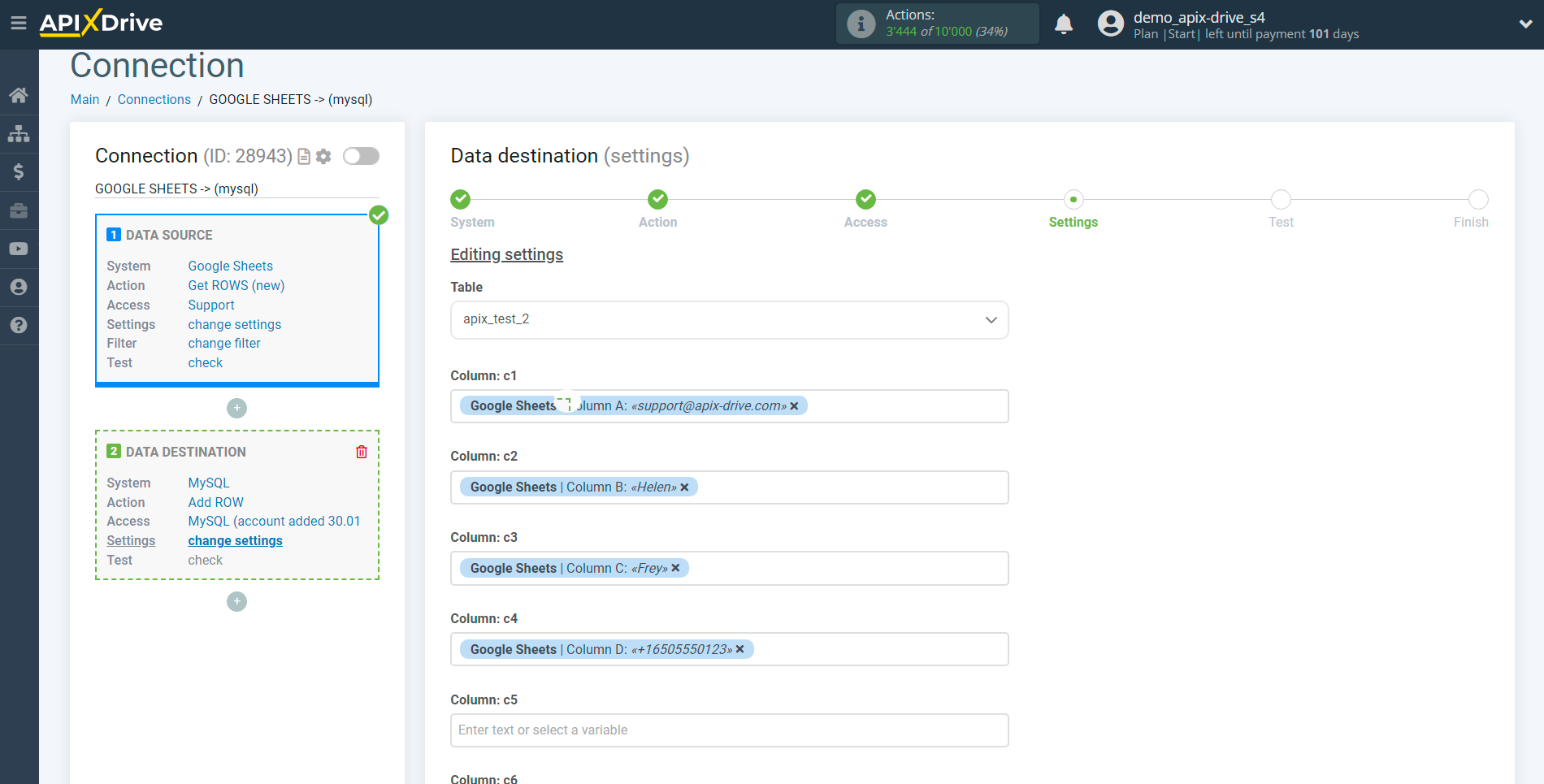

Now you need to assign variables from the Data Source system to the columns of the table you need.
To add a variable, click on the column field and select the desired variable from the drop-down list. Please note that you can use not only Data Source variables, but also manually entered data.

Click "Continue" when you're done with assigning fields.

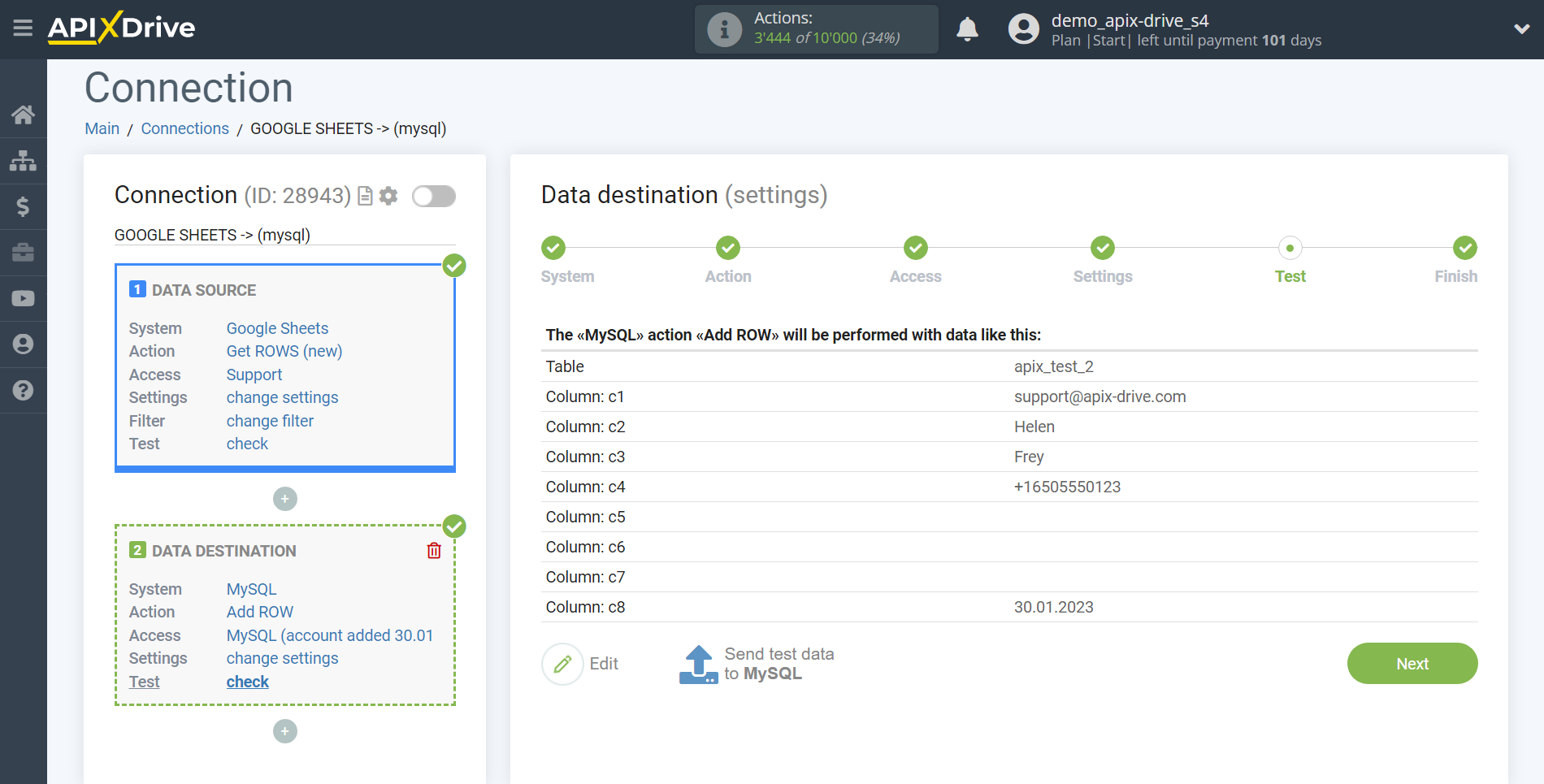

Now you see the test data to send to MySQL.
Click "Send test data to MySQL" and test the table and sheet in MySQL.
If everything suits you, click "Next" for further configuration.

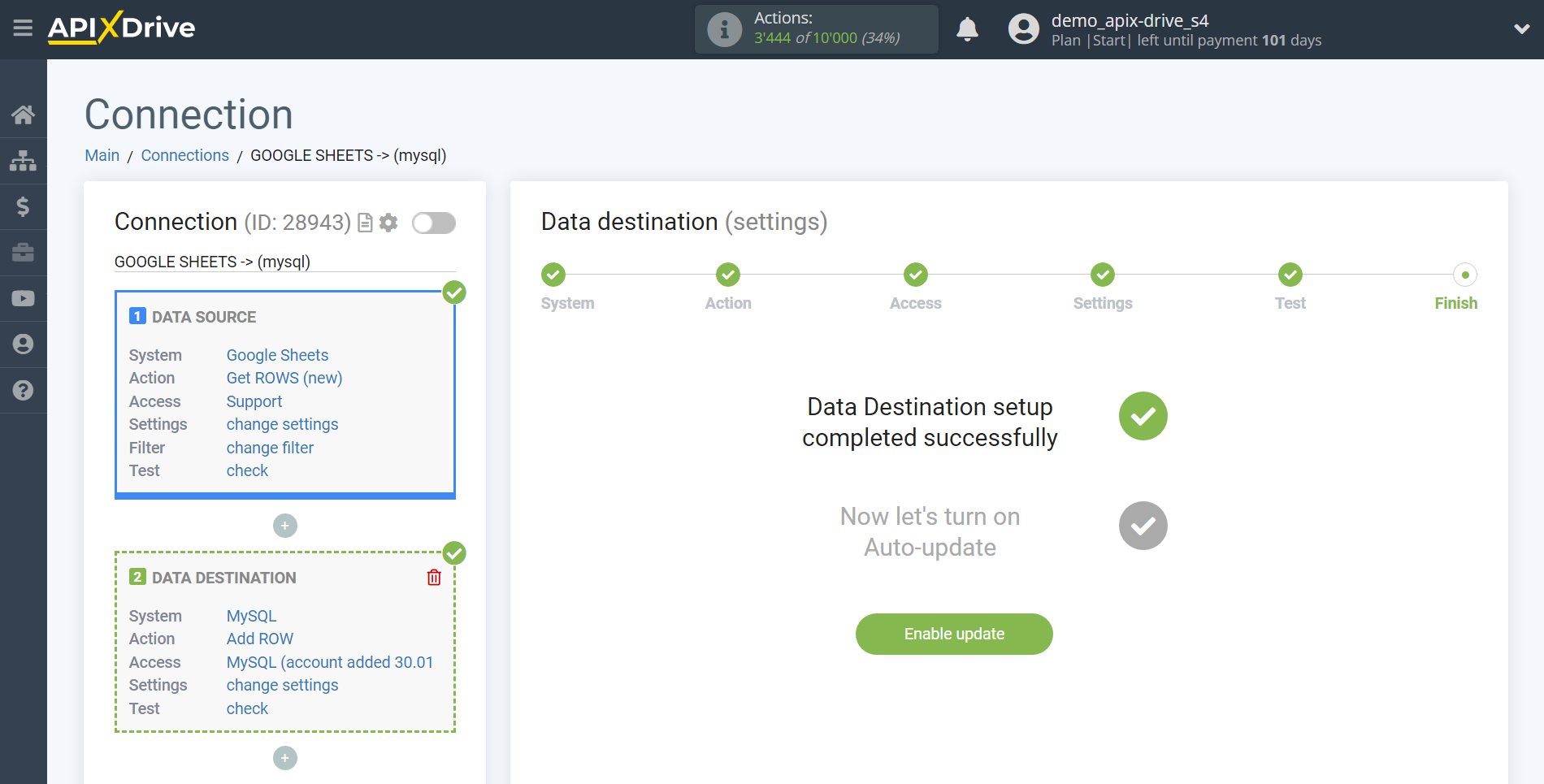

This completes the Data Destination system setup!
Now you can start choosing the update interval and enabling auto-update.
To do this, click "Enable update".

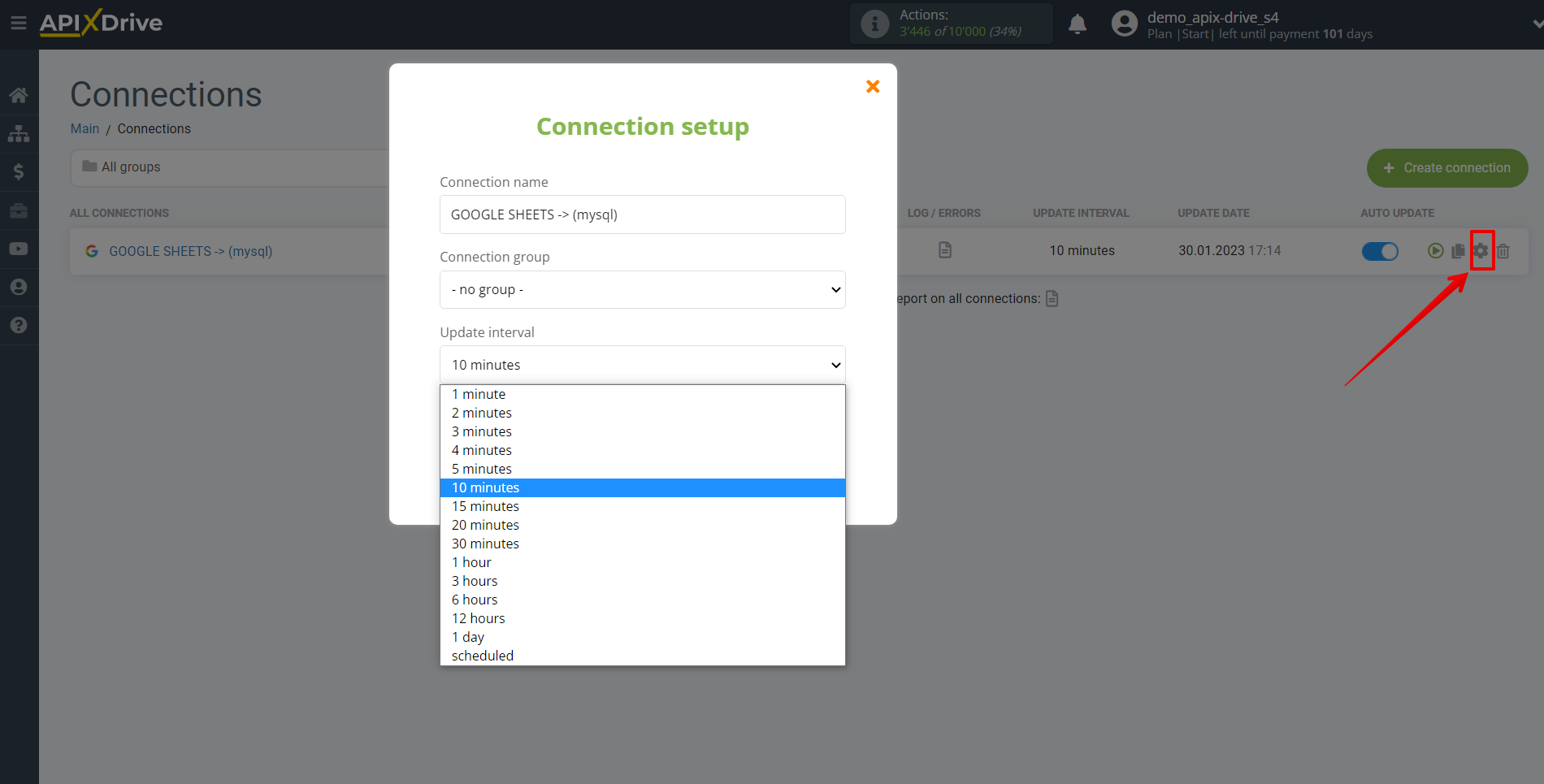

On the main screen, click on the gear icon to select the required update interval or set up scheduled launch. To start the connection by time, select scheduled start and specify the desired time for the connection update to fire, or add several options at once when you need the connection to fire.

Attention! In order for the scheduled run to work at the specified time, the interval between the current time and the specified time must be more than 5 minutes. For example, you select the time 12:10 and the current time is 12:08 - in this case, the automatic update of the connection will occur at 12:10 the next day. If you select the time 12:20 and the current time is 12:13 - the auto-update of the connection will work today and then every day at 12:20.

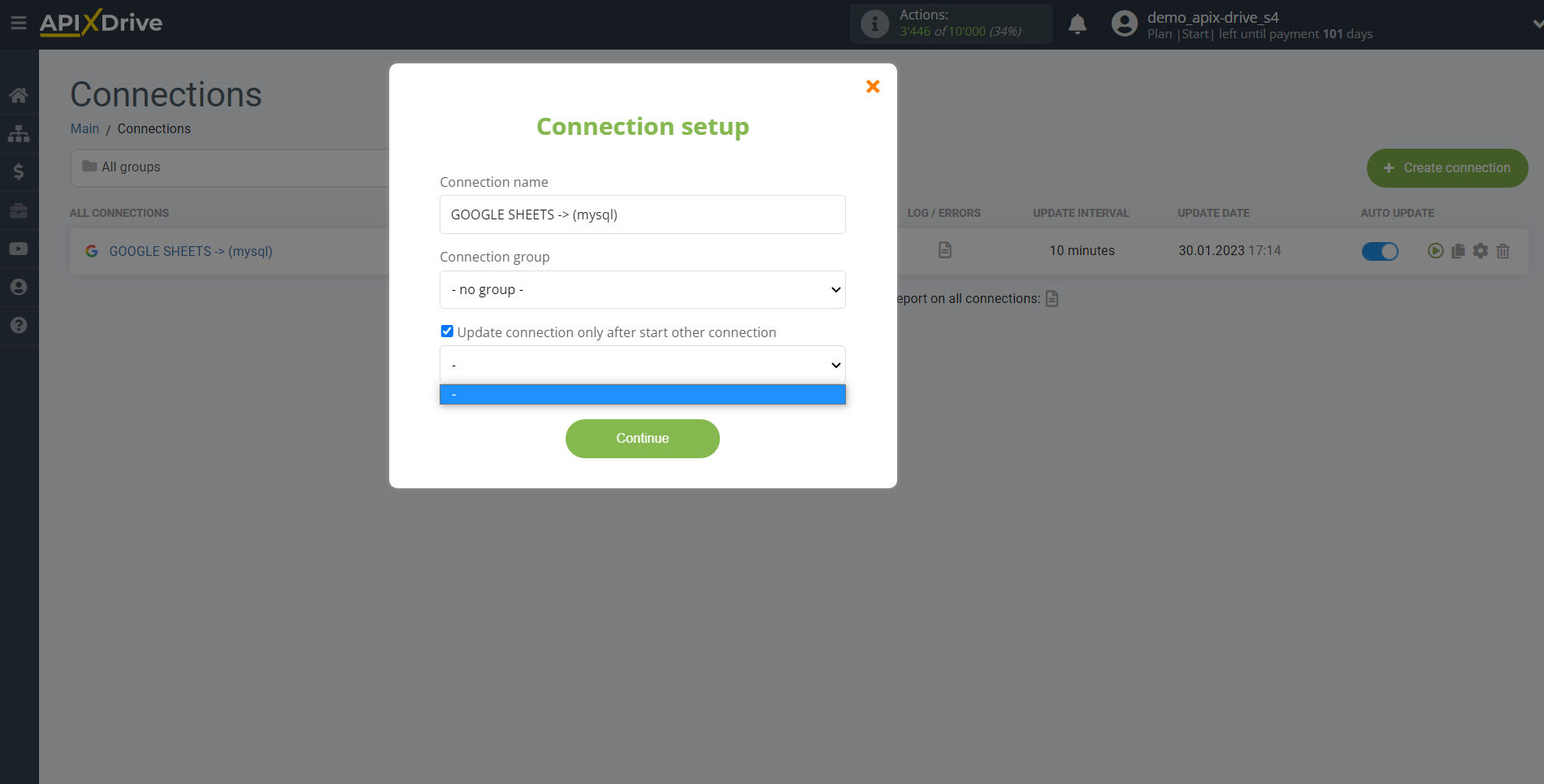

To make the current connection transmit data only after another connection, check the box "Update connection only after start other connection" and specify the connection after which the current connection will be started.

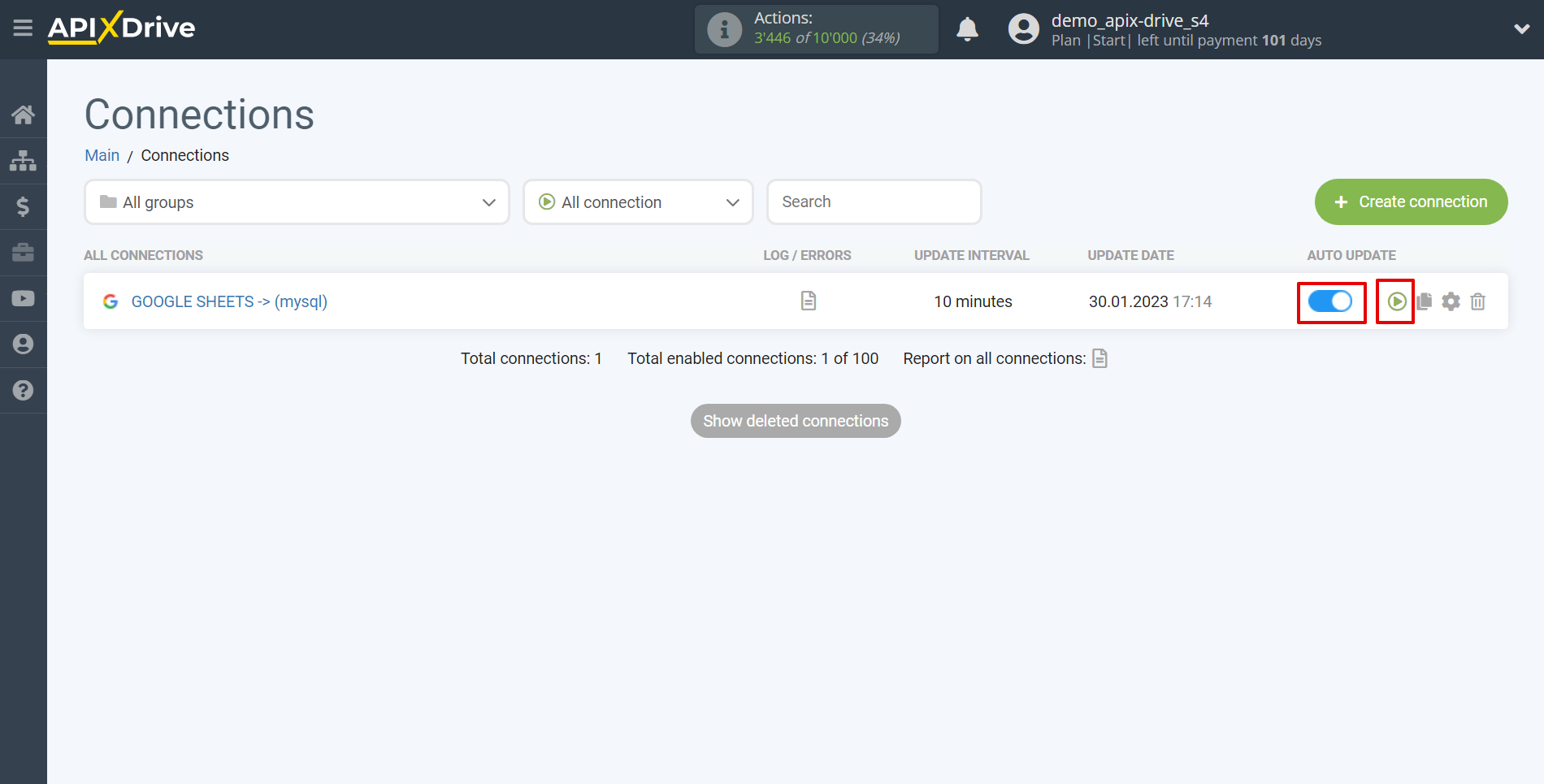

To enable auto-update, switch the slider to the position as shown in the picture.
To perform a one-time data transfer, click on the arrow icon.

This completes setup MySQL as a Data Destination! See how easy it is!?

Now don't worry, ApiX-Drive will do everything on its own!
