How to Connect Telnyx as Data Destination

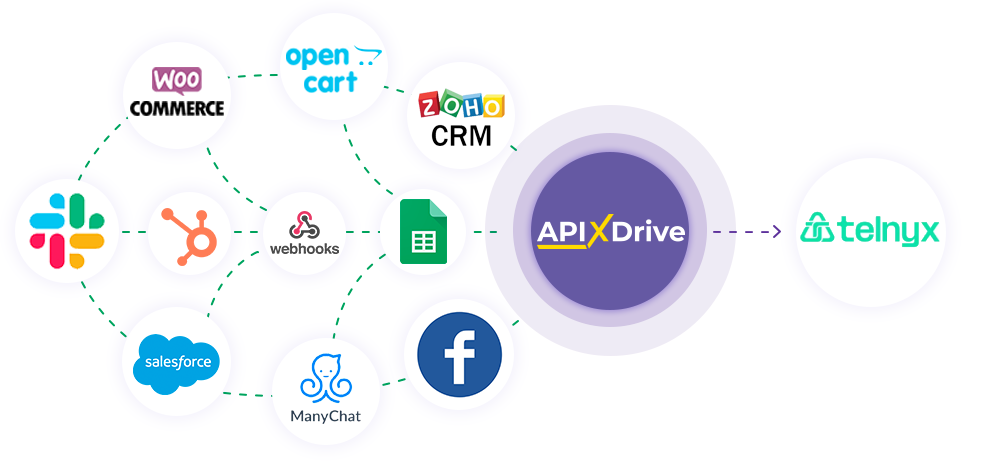

The integration will allow you to send sms to Telnyx, in response to some action in other systems. For example, if a new row appeared in Google Sheets, an order in CRM moved to another stage of the funnel, or when a new order appeared on your site. This will allow you to efficiently automate your workflows and save you a lot of time.
Let's go through the entire Telnyx setup steps together!
Navigation:
1. What will integration with Telnyx do?
2. How to connect Telnyx account to ApiX-Drive?
3. How to setup data transfer to Telnyx in the selected action?
4. An example of the data that will be sent to your Telnyx.
5. Auto-update and update interval.
Once you have set up a Data Source system, such as Google Sheets, you can set up Telnyx as a Data Destination.
To do this, click "Start configuring Data Destination".
Select the system as Data Destination. In this case, Telnyx must be specified.
Next, you need to specify the action "Send SMS" - based on the data from the Data Source, the system will send a sms to the specified number.
The next step is to select the Telnyx account to which will be sent the data.
If there are no accounts connected to the ApiX-Drive system, click "Connect account".

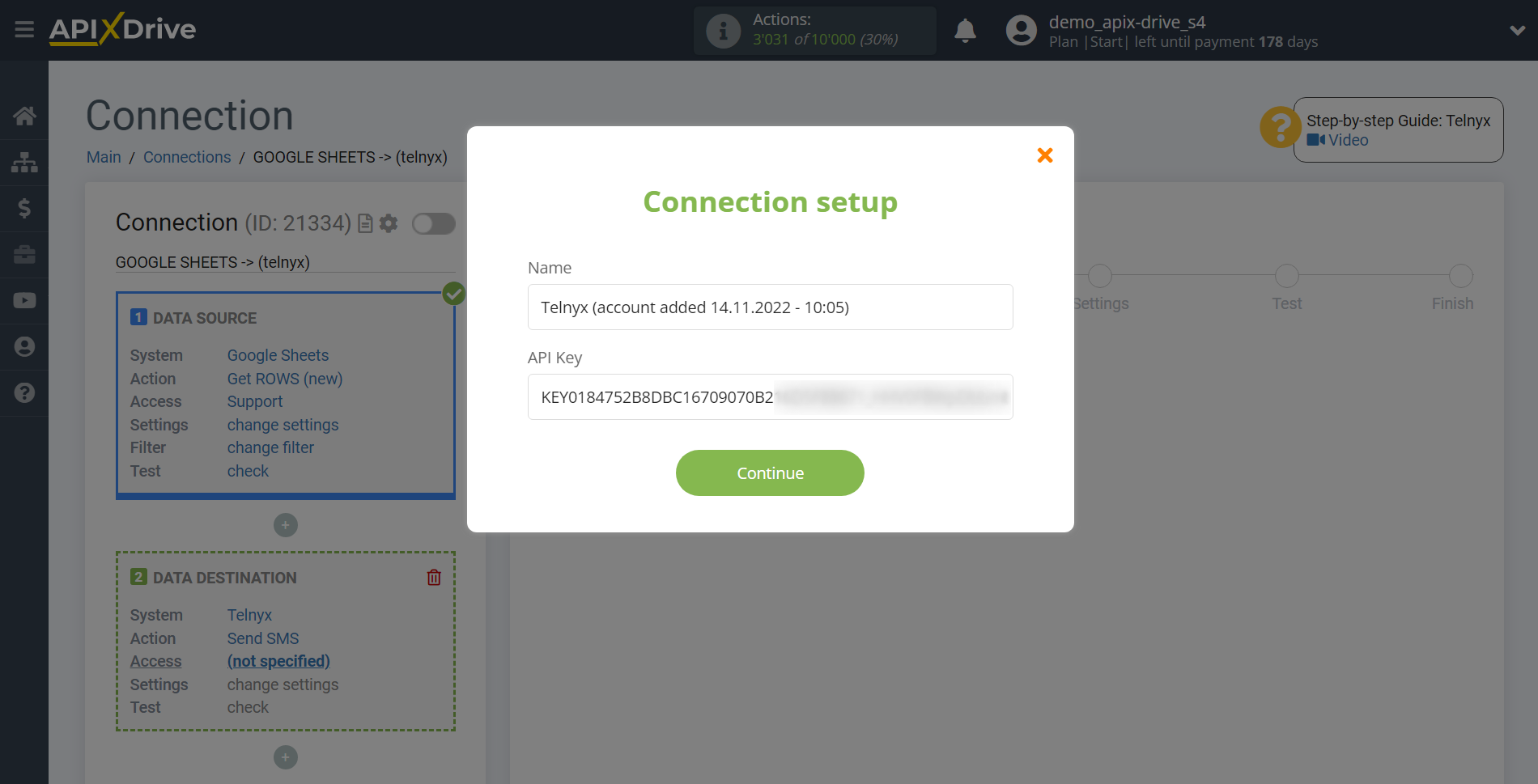

In the window that opens, fill in the "API Key" field.
To do this, let's go to the Telnyx personal account.
In your Telnyx account, in the left menu, go to the "Account Settings", then go to the "Keys & Credentials" tab and then click the "Create API Key" button.
Copy your "API Key" and paste it into the ApiX-Drive field. Then click save.
Attention! Be sure to drag the slider to the right of the API key, to the position indicated in the picture below.

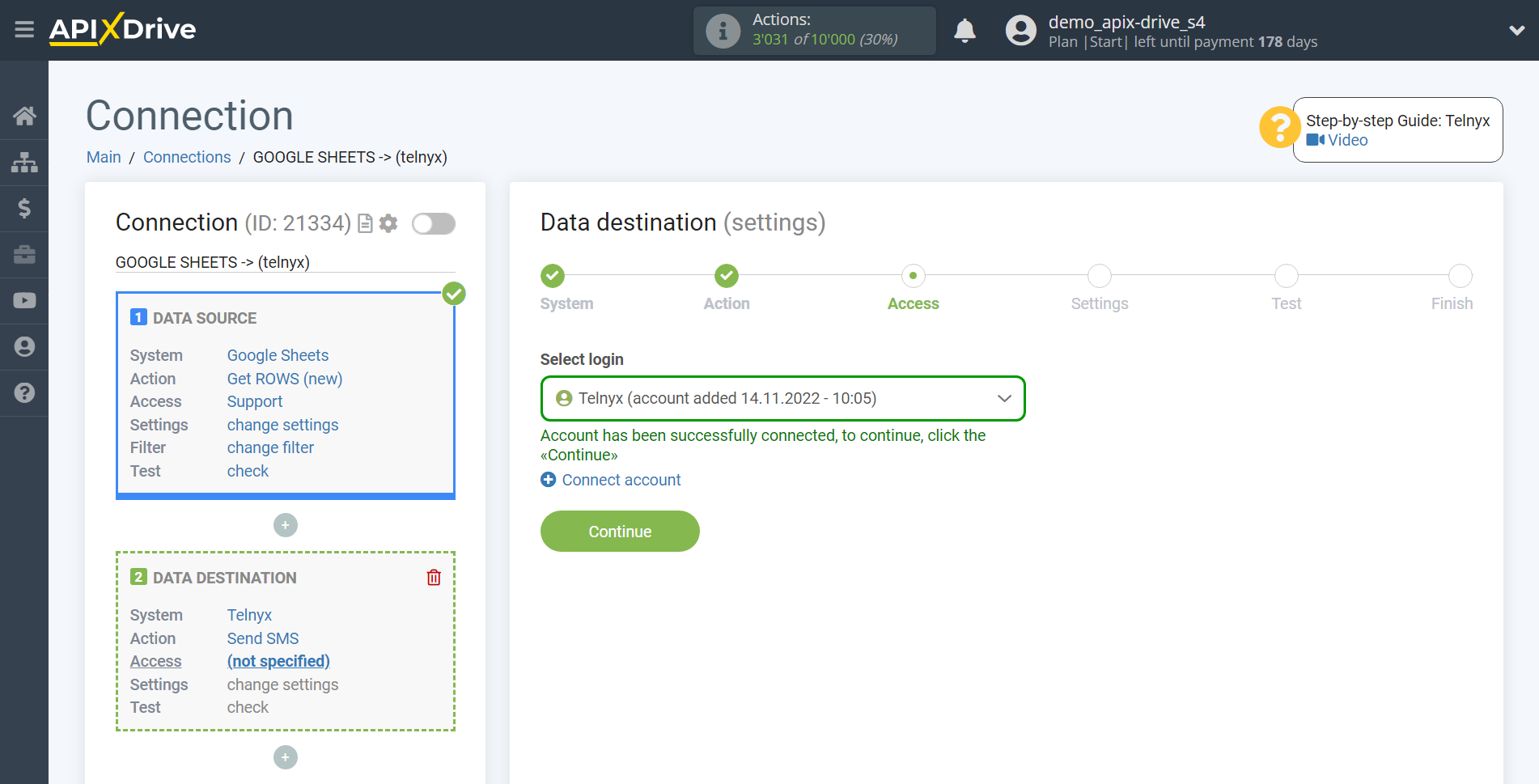

When the connected account is displayed in the "active accounts" list, select it.
Attention! If your account is in the "inactive accounts" list, check the correctness of the specified data!
Now, in the "Sender" field, you need to specify a registered sender in the Telnyx system, which is assigned to your account.

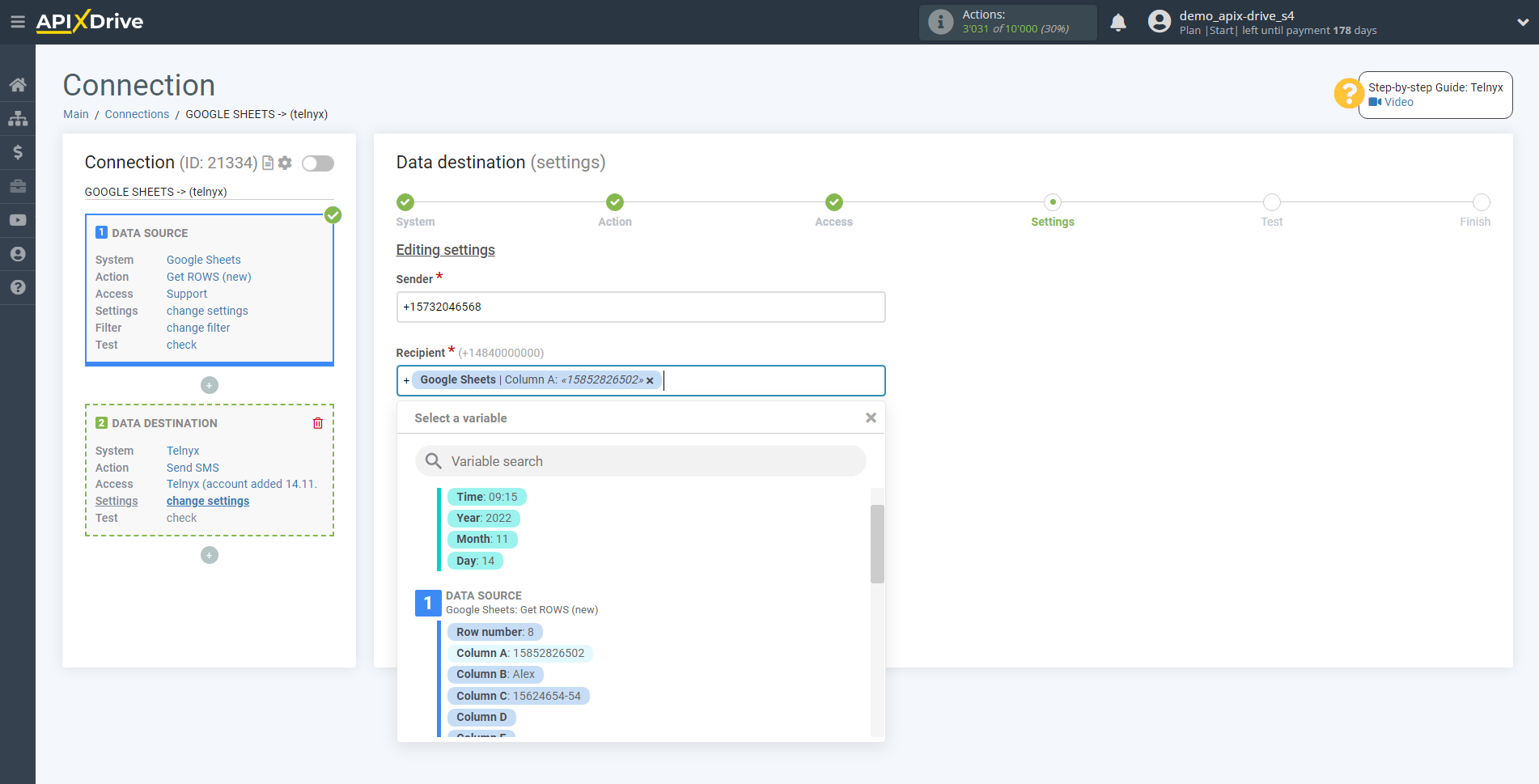

Next, you need to specify the field where the recipient's phone number will be taken from, in our case, this is the "A" column.
In the "Message" field, you can use both system variables such as time, date, year, month, day, as well as variables from the data source system, in this case Google Sheets.
You can combine these variables in any way you like. For example, manually write the text and add the order number from the Google Sheets column.
Now you can see how the future SMS message will look like, according to the selected data.
Click "Send test data to Telnyx" and an SMS message will be sent to the phone number specified in the test data.
If something does not suit you - click "Edit" and go back one step.
If everything suits you, click "Next" to continue the setup.
This completes the Data Destination system setup!
Now you can start choosing the update interval and enabling auto-update.

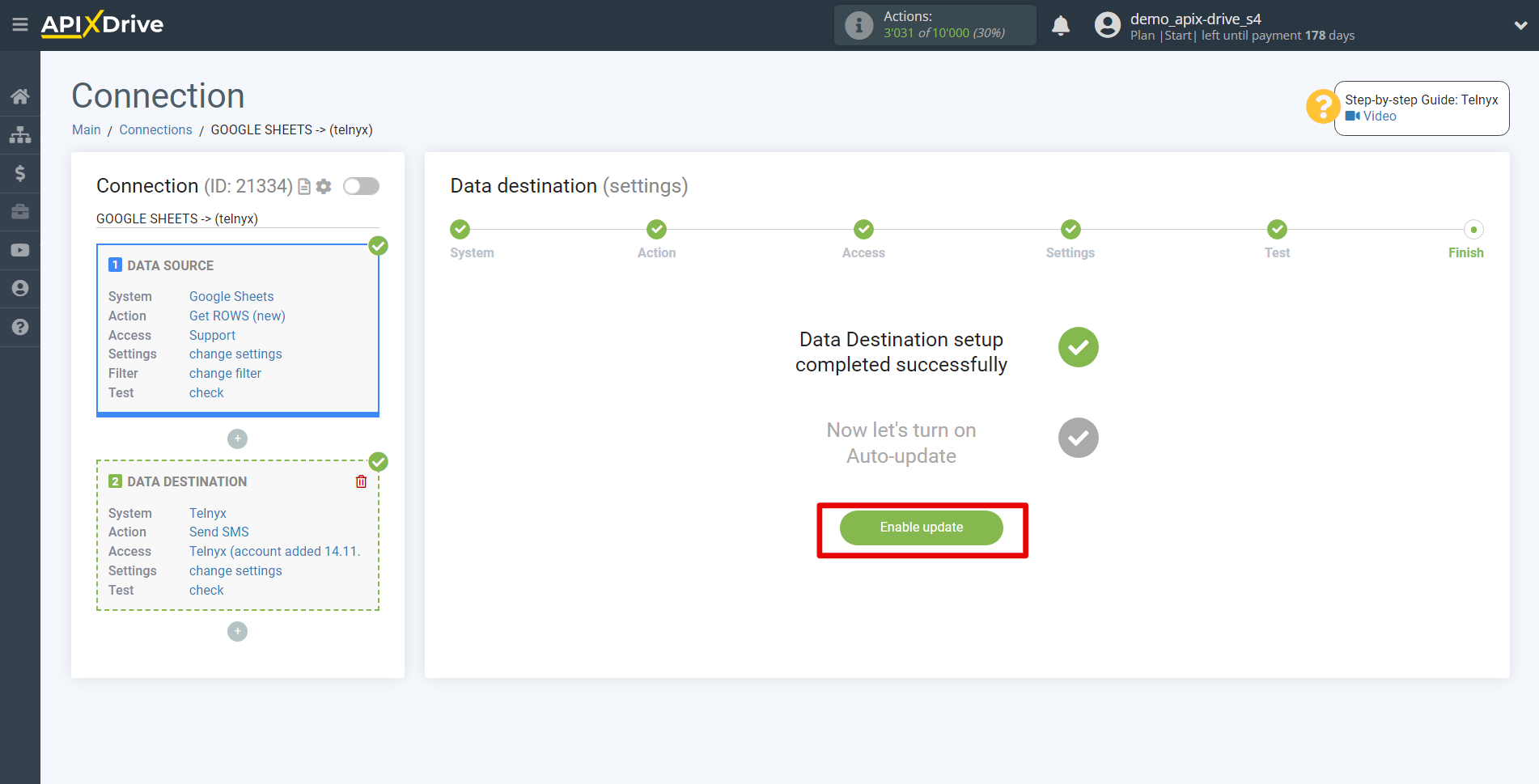

To do this, click "Enable auto-update".

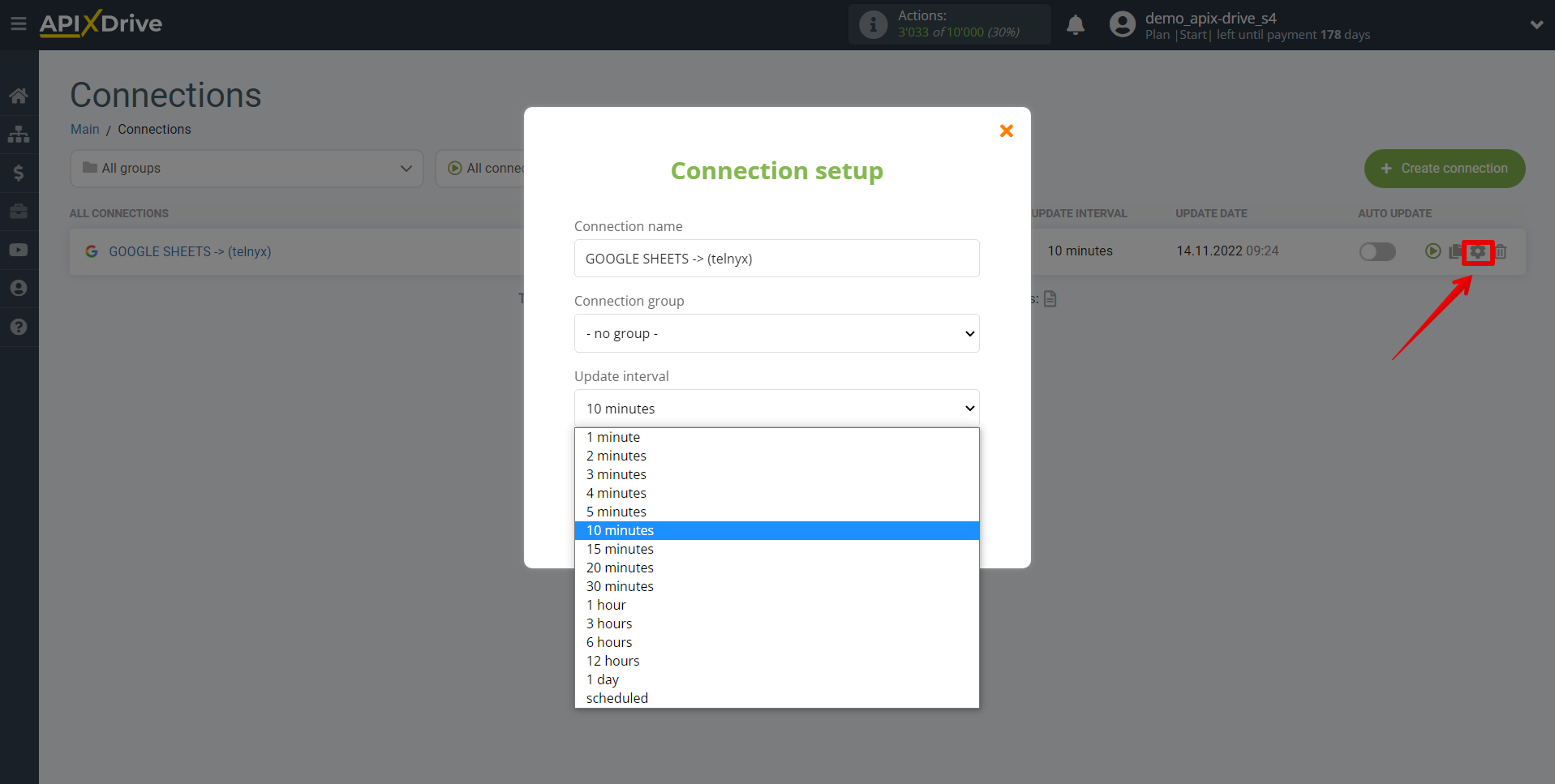

On the main screen, click on the gear icon to select the required update interval or setup scheduled launch. To start the connection by time, select scheduled start and specify the desired time for the connection update will be started, or add several options at once when you need the connection will be started.
Attention! In order for the scheduled run to work at the specified time, the interval between the current time and the specified time must be more than 5 minutes. For example, you select the time 12:10 and the current time is 12:08 - in this case, the automatic update of the connection will occur at 12:10 the next day. If you select the time 12:20 and the current time is 12:13 - the auto-update of the connection will work today and then every day at 12:20.

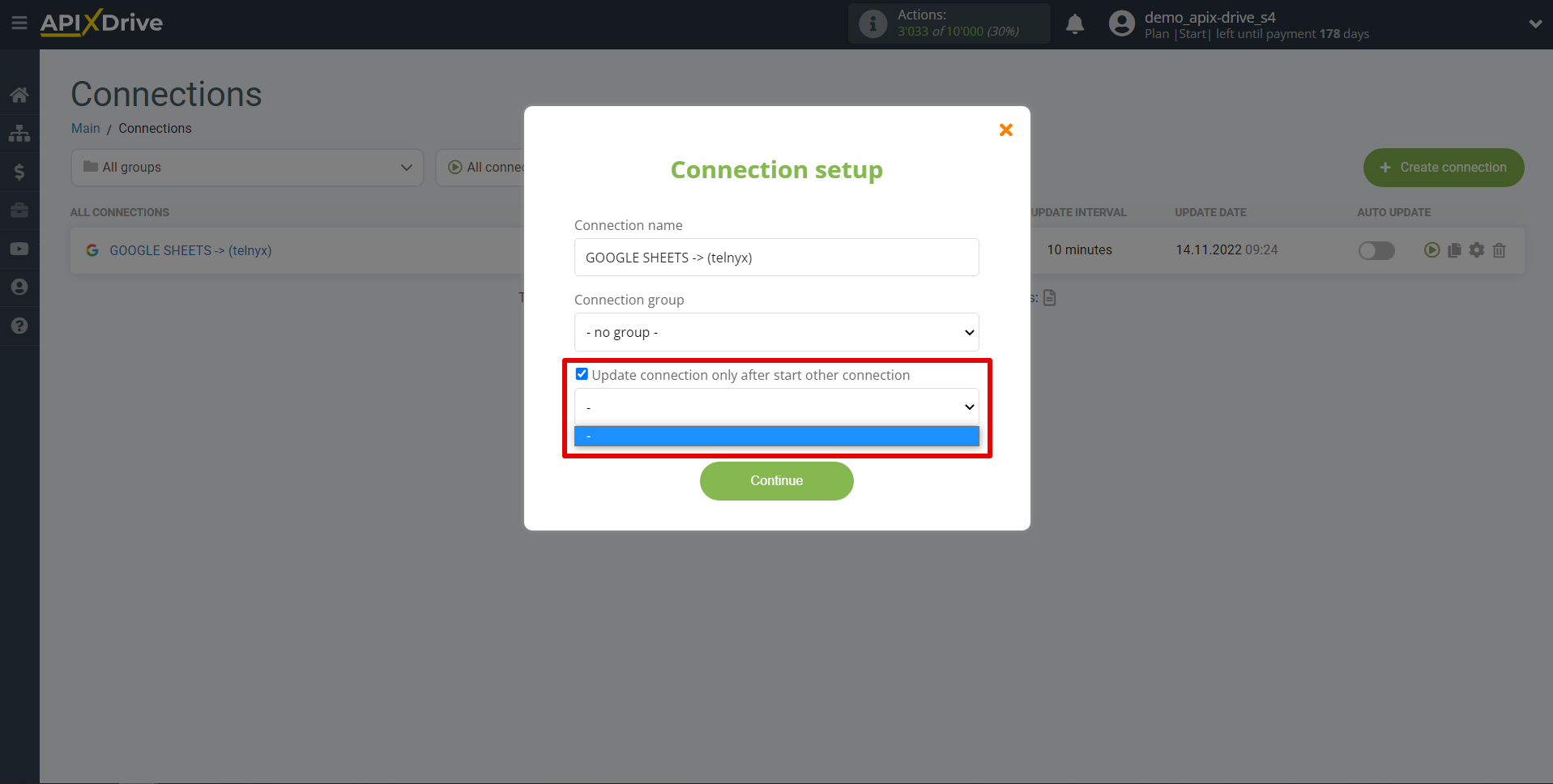

To make the current connection transmit data only after another connection, check the box "Update connection only after start other connection" and specify the connection after which the current connection will be started.

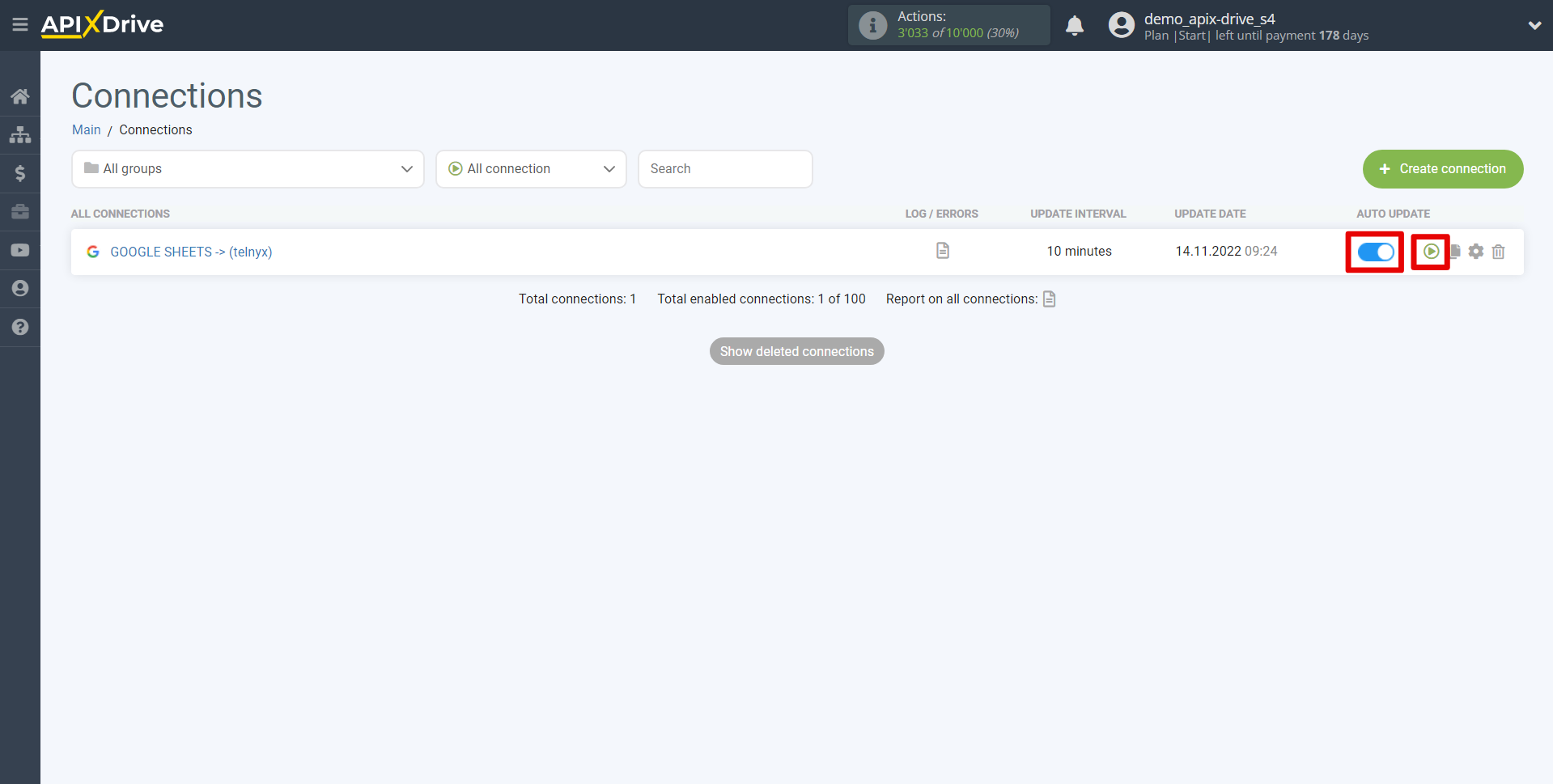

To enable auto-update, switch the slider to the position as shown in the picture.
To perform a one-time data transfer, click on the arrow icon.
This completes the setup Telnyx as Data Destination! See how easy it is!?
Now don't worry, ApiX-Drive will do everything on its own!
